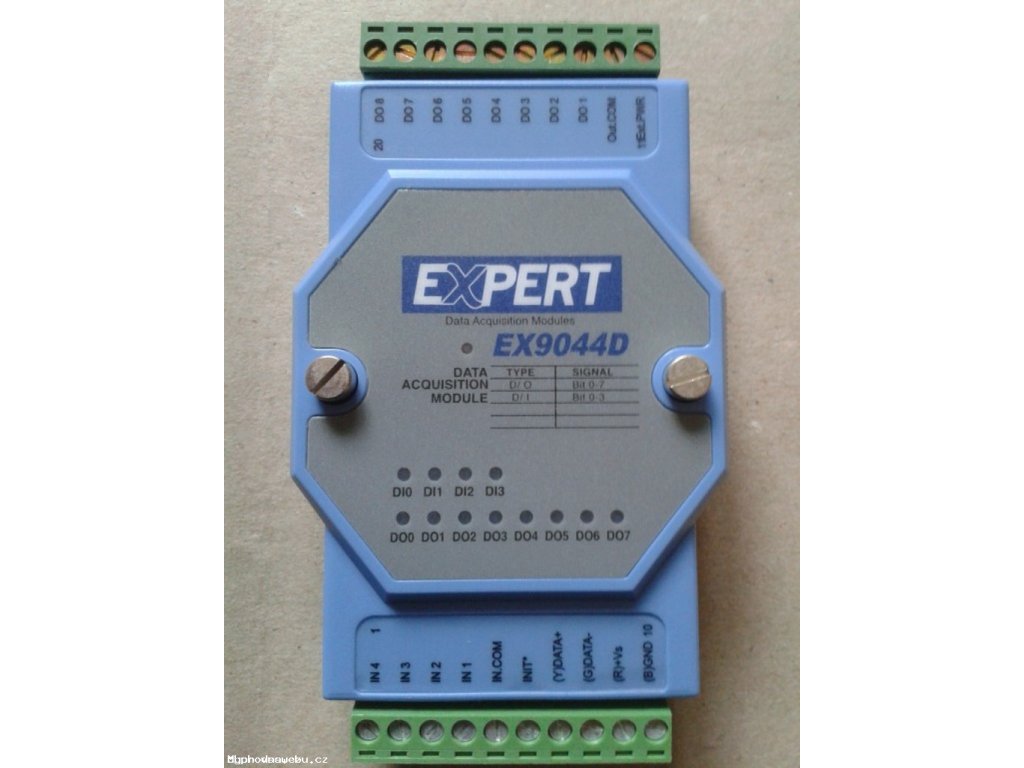

EX-9044D: 4 digitální vstupy a 8 digitálních výstupů (odděleno)

Kód: 54/M2
3 000 Kč –86 %
EX 9044D (1)
3 000 Kč –86 % 399 Kč
Skladem (3 ks)
Možnosti doručení

ExpertDAQ Digital IO module communicate via RS485 and are available with Modbus RTU. Within one RS485-network up to 256 modules may be controlled.

Detailní informace

Detailní popis produktu

Nepoužité

Původní skladová cena: 2484 Kč bez DPH

Odkoupeno ze skladu v roce 2016.

Product data sheet: http://www.logicio.com/files/RT-EX-9044D.pdf
Technical manual: http://www.logicio.com/files/RT-EX-9044DTechnicalManualv2.01.pdf



ExpertDAQ Digital IO module communicate via RS485 and are available with Modbus RTU. Within one RS485-network up to 256 modules may be controlled. Without a RS485 Repeater the maximum cable length is 1200m. The RS485 Digital IO module are sturdy, power saving and easy to use.

The EX9044D has 4 digital isolated Input and 8 digital open-collector Output. The Digital IO RS485 module can emit currents of 375mA at 30V and has a LED-display for each channel. The Digital IO RS485 module was developed for use in a wide temperature range.

Features:

  • 4 digital input, 8 open-collector output channels
  • all inputs isolated
  • output voltage up to 30V, output current up to 375mA
  • LED-display for each channel
  • extended temperature range
  • low input impendance
  • Digital Level 0: <+1V - Digital Level 1: 4-30 V
  • output as RS485-interface
  • manual configuration or with supplied Software
  • power supply 10 - 30VDC
  • Hard- and Software Watchdog
Open Collector Output Modules
  EX9042D EX9043D EX9044D EX9050D
Output Channel 13 16 8 8

Isolation

Isolation with Common power

Non Isolation

Isolation with Common power Non Isolation
Isolation Voltage 3750Vrms 3750Vrms
Load Voltage Max +30V
Max Load Current 100mA 100mA 375mA 30mA
Input Channel No Input 4 7
Isolation Isolation with Common Sources Non Isolation
Isolation Voltage 3750Vrms
Digital Level 0

1V Max

1V Max
Digital Level 1 4V to 30V 3.5V to 30V
Input Impedance 3K Ohms
Power Input +10V to +30VDC
Power Consumption

1.7W

1.1W

1.7W

1.1W
